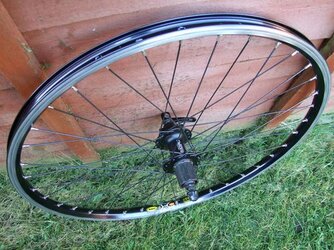

26" Handbuilt MTB Wheel
Mavic XM719 Rim with eyelets - black (with braking surface) 36h
Shimano Deore M525 6-bolt disc hub - black (includes Q/R skewer) 36h
DT Swiss competition double butted spokes 36h - black
DT Swiss Brass (silver colour) 14mm nipples
NO CASSETTE OR RIM TAPE
£75 posted (cost £110)
This wheel is compatible with V-brakes and 6-bolt disc brakes. I originally bought it as a spare but no longer need it. It has done no more than 40 miles and is essentially like new. Perfectly straight and true.
More info about rim and hub below:
The rim for a high end built up Cross Mountain wheelset. Wide enough to allow the use or large volume tyre, but reasonably light, XM 719 answers all of the epic mountain biker's need.
Features:
• 6106 aluminium alloy
• Maxtal
• SUP
• Traditional drilling
• UB Control
• Single eyelet
• Clincher
Dimensions:
• ETRTO compatible size: 559 x 19
• Recommended tire widths: 1.50 to 2.30
• Valve hole diameter: 8.5 mm, supplied with valve adapter
• Recommended rim tape: 559 x 20 x 0.6
• Weight: Ø 650: 475 grams
Technologies:
• Maxtal: Exclusive to Mavic. An aluminium alloy that is 30% more resistant than a 6106 alloy, for lighter and stronger rims.
• SUP: Soudé Usiné Process. After bending, the rim joint is arc welded. The welded seam is then milled for a smooth finish. A welded and milled rim joint is extremely strong, eliminates shuddering when braking, and offers superior wheel balance.
• UB Control: Usiné Brut Control. The braking surfaces are milled to improve braking friction and eliminate shuddering.
Double Contact Seals: Shuts out water, dust, and mud from the hub bearing.
Borozon Treated Races: Diamond polished bearing races provide ultra-smooth bearing action.
8 or 9-Speed Compatible: Freehub accepts 8 or 9-speed HG sprocket clusters
Specifications
Sprockets 9/8-speed
Disc Brake Compatible yes
Over Locknut 135mm
Axle Length 135mm
Axle Diameter & Material 10mm steel
QR Lever aluminum
Cone Races borozon
Cup Races barrel polished
Contact Sealing double
Spoke Holes 36 holes
Spoke Hole Circle 61mm
Hub Shell aluminum/anodized
Center to Flange-Right 18.5mm
Center to Flange-Left 32.15mm
Weight 449g
Mavic XM719 Rim with eyelets - black (with braking surface) 36h
Shimano Deore M525 6-bolt disc hub - black (includes Q/R skewer) 36h
DT Swiss competition double butted spokes 36h - black
DT Swiss Brass (silver colour) 14mm nipples
NO CASSETTE OR RIM TAPE
£75 posted (cost £110)
This wheel is compatible with V-brakes and 6-bolt disc brakes. I originally bought it as a spare but no longer need it. It has done no more than 40 miles and is essentially like new. Perfectly straight and true.
More info about rim and hub below:
The rim for a high end built up Cross Mountain wheelset. Wide enough to allow the use or large volume tyre, but reasonably light, XM 719 answers all of the epic mountain biker's need.
Features:
• 6106 aluminium alloy
• Maxtal
• SUP
• Traditional drilling
• UB Control
• Single eyelet
• Clincher
Dimensions:
• ETRTO compatible size: 559 x 19
• Recommended tire widths: 1.50 to 2.30
• Valve hole diameter: 8.5 mm, supplied with valve adapter
• Recommended rim tape: 559 x 20 x 0.6
• Weight: Ø 650: 475 grams
Technologies:
• Maxtal: Exclusive to Mavic. An aluminium alloy that is 30% more resistant than a 6106 alloy, for lighter and stronger rims.
• SUP: Soudé Usiné Process. After bending, the rim joint is arc welded. The welded seam is then milled for a smooth finish. A welded and milled rim joint is extremely strong, eliminates shuddering when braking, and offers superior wheel balance.
• UB Control: Usiné Brut Control. The braking surfaces are milled to improve braking friction and eliminate shuddering.
Double Contact Seals: Shuts out water, dust, and mud from the hub bearing.
Borozon Treated Races: Diamond polished bearing races provide ultra-smooth bearing action.
8 or 9-Speed Compatible: Freehub accepts 8 or 9-speed HG sprocket clusters
Specifications
Sprockets 9/8-speed
Disc Brake Compatible yes
Over Locknut 135mm
Axle Length 135mm
Axle Diameter & Material 10mm steel
QR Lever aluminum
Cone Races borozon
Cup Races barrel polished
Contact Sealing double
Spoke Holes 36 holes
Spoke Hole Circle 61mm
Hub Shell aluminum/anodized
Center to Flange-Right 18.5mm
Center to Flange-Left 32.15mm
Weight 449g
