Bits dropping from my Brompton

[Mice]

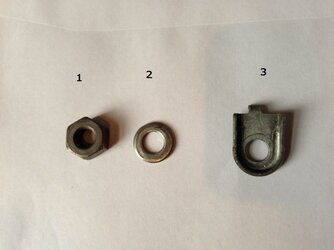

Whilst carrying my Brompton through a department store this afternoon I heard a noise and found that these three pieces had fallen from my Brompton.

In case you wondered, I think they are from the front wheel and were holding a stay (stay??) which has the clip on it that keeps the folded bike clipped to the frame. (I realise I may be using some of the right words but not necessarily in the right order!)

If you have a minute to let me know which bit goes in which order and in which direction/side that would be great.

Big thanks

Mice



[Rohloff_Brompton_Rider]

3,2,1 .....



[Mice]

Brill - super speedy reply, thank you. Except..... Ooops silly me! I forgot to mention 4. The clippy bit. Where does that fit in?

Mice



[Rohloff_Brompton_Rider]

2a...if that makes sense.



[Mice]

Indeed it does make sense, bromptonfb!

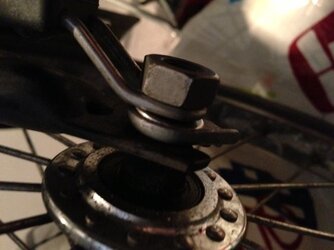

Is this right?

Many thanks!

Mice



[Rohloff_Brompton_Rider]

Nope...the washer (the flat round thing) need to be on the other side of the catch.



[Rohloff_Brompton_Rider]

http://support.brompton.co.uk/attachments/token/urath7mthurlh1g/?name=front_wheel.pdf



[Mice]

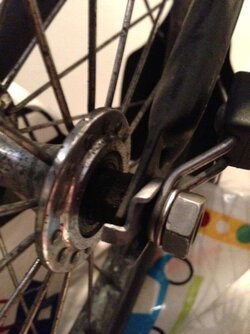

Aha! Like this??

Thank you for the link - as clear as mud! Cycle Chat Peeps much, much more helpful!

Fingers crossed this time it's right. Then I will tighten it with a spanner rather than by hand!

Big thanks!

Mice



[Rohloff_Brompton_Rider]

In the right order, but spin the dished washer to fit the fork catch (3) before tightening.



[Mice]

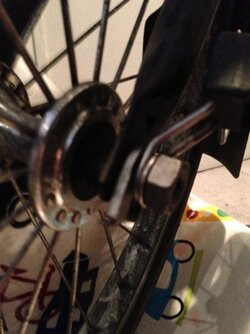

Cool! Hopefully I have moved the right bit...

Big thanks

Mice



[Rohloff_Brompton_Rider]

Don't forget that the tab goes into the hole in the fork, it stops the wheel falling out when loose.



[ianrauk]

Needs a clean.



[TheDoctor]

Needs a clean.

You always think bikes need cleaning!!



[Mice]

Needs a clean.

Hahahahaha!!! Indeed it does!!

Am still trying to work out bromptonfb's last comment - tap into the hole in the fork - might go to bike shop tomorrow to have it checked! It does work tho now and everything stayed together which is reassuring!! So thank you very much bromptonfb.

Mice



[Mice]

You always think bikes need cleaning!!

Yebbut only when they do need a clean! Ianrauk always notices how clean my road bike is. The Brommie however is a whole different ballgame!!
