Strange Yellow Bung R8170

Page may contain affiliate links. Please see terms for details.

Rupie

Über Member
Morning, Trying to install a pair of R8170 Di2 Shifters and all is Ok but within the back of the unit, where the clamp onto the bar there is a yellow bung. If I press it oil squirts out the correct opening where the hydraulic cable will be fitted. What I need to know is do I need to leave it in place. I do not want to tighten everything and it fractuer part of the casing. Nor do I want to leave it out then have to disassemble everything to put it in.
The Shimano instructions and most of th Youtube videos I have watched to not mention its existence. Even component exploded views ?
Thanks
Rupert


Colin S

Über Member
I think it will be a plug in the brake hose entry port. You will need to remove this to fit the hose.

Colin


Attachments

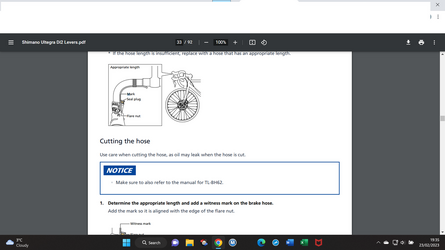

  • Shimano Screenshot.png
    Shimano Screenshot.png
    44.7 KB · Views: 6
