What weird bottom bracket is this??? Help!

Limey16

New Member
Hi all,

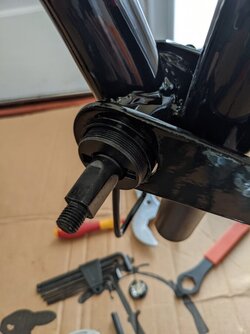

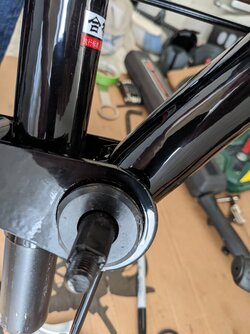

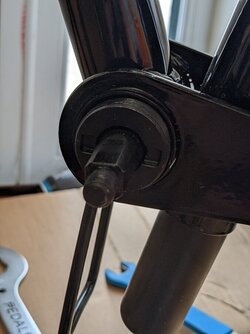

Trying to remove a bottom bracket on a 16 inch wheel folding bike...and well it's weird (see photos) - Has 2 notches for a tool but there square?! Took pics of the other side of the bike too, If any wizards out there could tell me what bottom bracket this is and the tools needed/way to remove it would be awesome, have done normal Bbs on mountain bikes, but stumped on this bad boy


Attachments

  • PXL_20220513_180534755.jpg
    98.6 KB · Views: 2
  • PXL_20220513_180430991.jpg
    72.6 KB · Views: 3
  • PXL_20220513_180452351.jpg
    66.3 KB · Views: 5

classic33

Forum God


andrew_s

Guru
Location
Gloucester
It's an old & cheap model.

The drive side (pic 1) should use a tool similar to the Park HCW-4
Note that the drive side is often a left-hand thread (on English BBs at least)

I take it you've already got the lockring off the NDS (pics 2 & 3).
I believe the correct tool for that side is the Hozan c-207.

The NDS may be removable with a drift/punch (eg a screwdriver) and hammer, or the peg spanner end of the HCW-4 may be up to the job.

OP
OP
L

Limey16

New Member
Note that the drive side is often a left-hand thread (on English BBs at least

Cool thanks for the insight much appreciated, so to loosen I'm going anti clockwise? If I'm looking at that side of the bike. Does the NDS side need to come off first? - which way would that be to loosen
